FAG Repair Insert Unit 566847.H195

  • ManufacturerFAG
  • Part NoBRG0010
  • OE Ref3307300700
    03307300801
    03307301000
    03307301300
    03434301100

Request a quote
Product Added to Quote Successfully.
View Quote

  • Next day delivery

  • Global Distribution

  • Export Shipping & Documentation

  • Palletised Logistics

Additional information

Weight 5.96 kg
Manufacturer

Bearing Type

Bearing Warranty

Vehicle Make

Inner Diameter 1

100.00mm
Outer Diameter 1

148.00mm
Width 1

70.50mm
Inner Diameter 2

100.00mm
Outer Diameter 2

148.00mm
Width 2

70.50mm

Any manufacturer or OE part numbers are listed for cross reference and identification purposes only and in no way imply that this is a genuine part. As models can vary please check with your vehicle registration or chassis number if you are unsure of the OE number.

Description

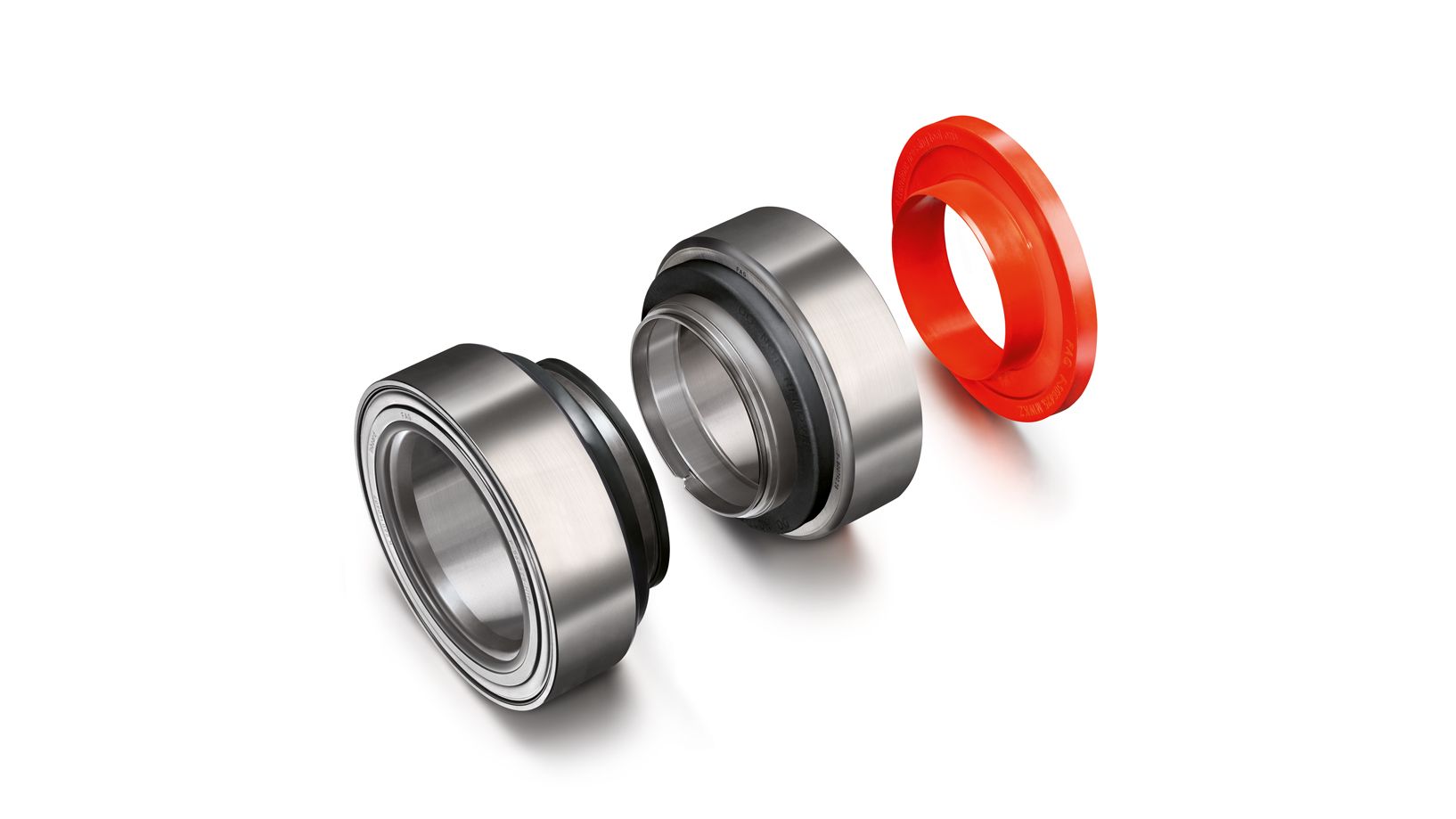

The FAG repair insert unit (RIU) is a repair solution developed by Schaeffler for the garage. It consists of two preassembled taper roller bearings that are joined by means of a retaining ring after installation. The FAG RIU is lubricated for life and sealed against contamination. OE Reference: 3307300700 – 03307300801 – 03307301000 – 03307301300 – 03434301100
